Parametry produktu
|
||||
|

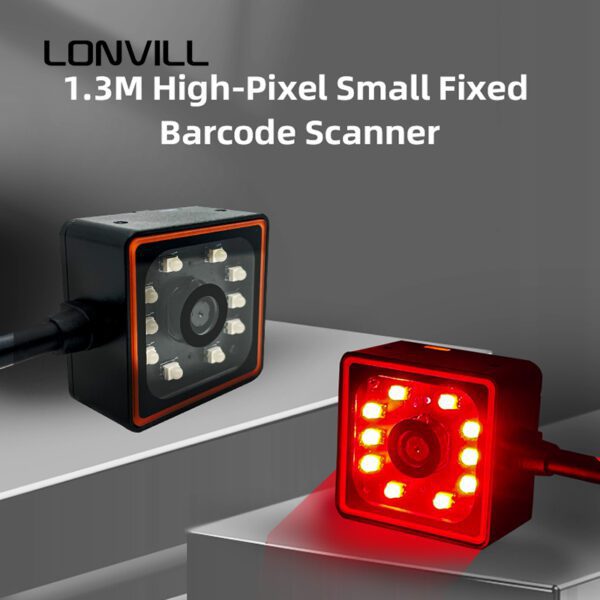

Resolution
|
1080 (H) * 1280(V) 1.3M High Performance Perceptron
|
|||
|

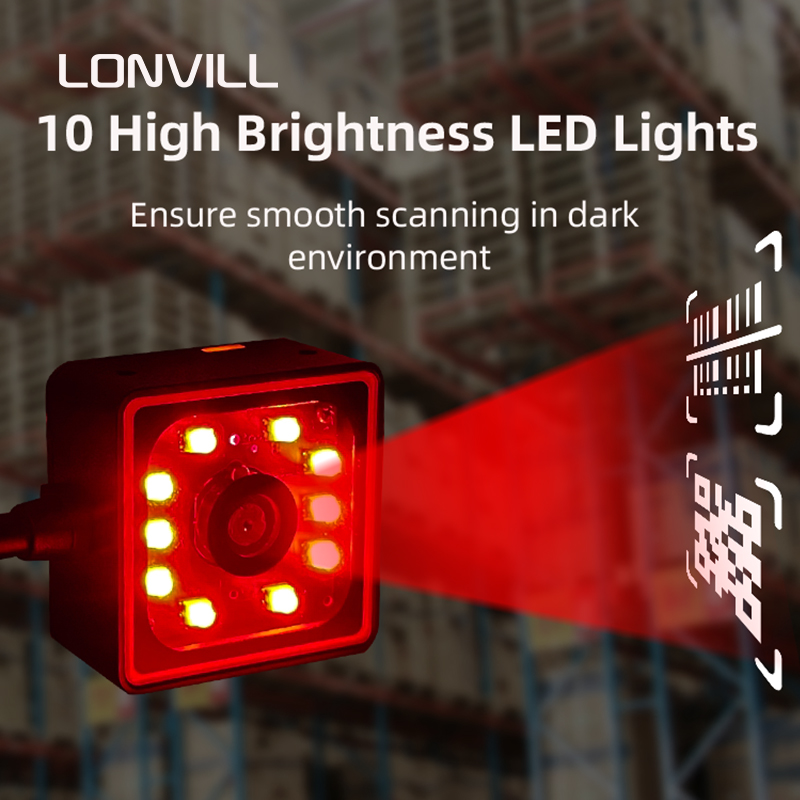

Illumination
|
10 LEDs（2 on top and 2 on bottom，2 on each sides），red light source
|
|||
|
Main Sensor
|
ARM Cortex-A7，1.2G High Performance CPU，MIPI interface
|
|||
|
Aiming Indicator
|
High brightness red dot aiming
|
|||
|

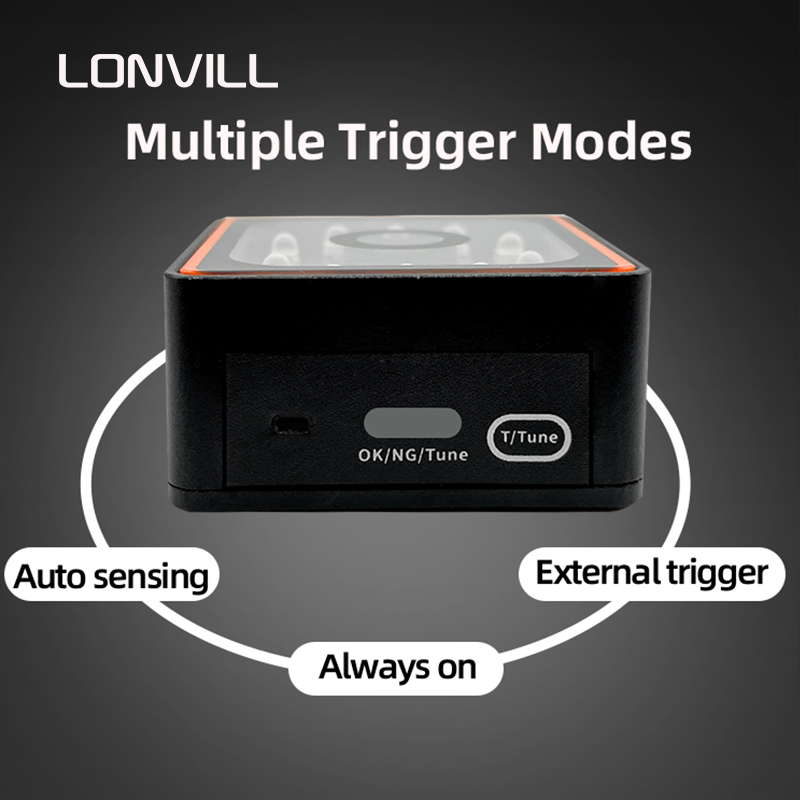

Reading Mode
|
Auto sensing, continuous mode, pulse mode (external trigger)
|
|||
|
Field of View
|
Horizonal(H) 36°，Vertical(V) 43°
|
|||
|
1D Code
|
UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32，Code11 , Codabar , Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5，Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded，RSS-14 Limited，Composite Code，RSS-14 Limited，Composite Code
|
|||
|
QR Code
|
PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , MaxiCode
|
|||
|
Motion Tolerance
|
Continuous scan mode: 0.5 m/s
|
|||
|
External trigger mode : 1.0-1.5 m/s
|
||||
|
Data Interface
|
||||
|
Communication
|
RS232，USB (HID ; CDC)， EA100：Ethernet / TCP/IP
|
|||
|
External Input
|
With external trigger line or control box：1-way optocoupler isolation input（NPN / PNG / Relay）
|
|||
|
External Output
|
Version connected to control box：2-way optocoupler isolated output（Good ; NG）
|
|||
|
Power Supply
|
Direct connection version： 5VDC，Control Box：5-24 VDC （The network port supports POE power supply）
|
|||
|
Physical Property
|
||||
|

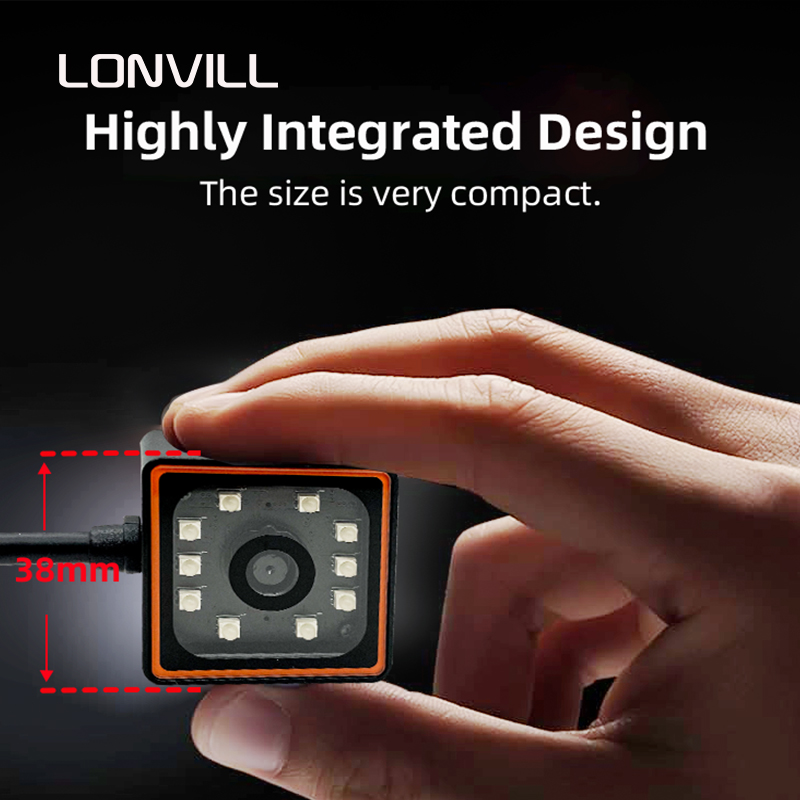

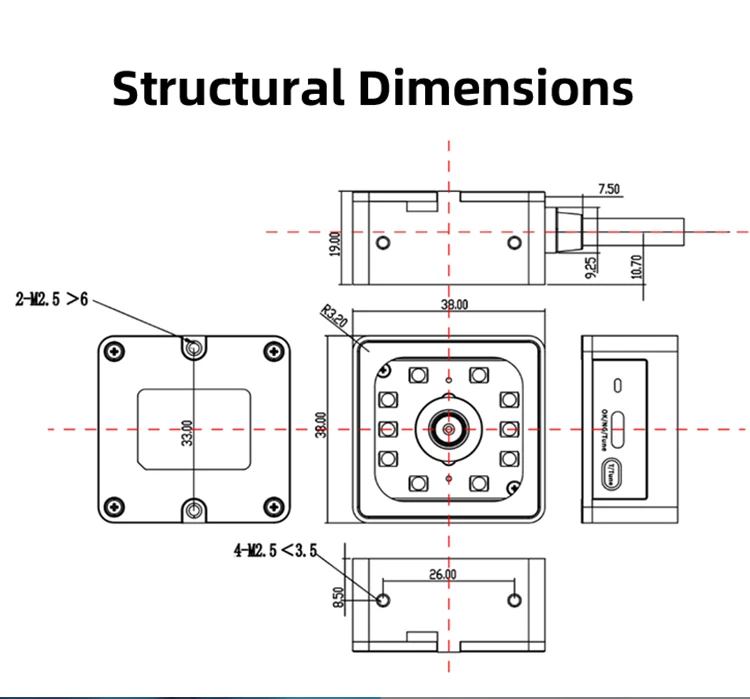

Size
|
38(W) × 38 (D) × 19 (H)(mm)，not include SR part
|
|||
|
Weight
|
The host is about 40g, excluding the weight of the wires
|
|||
|
Shell Material
|
Aluminum alloy
|
|||
|
Housing Protection
|
IP65
|
|||
|
Reliability
|
||||
|
Storage Temperature
|
-40℃~+70℃
|
|||
|
Working Temperature
|
-10℃~+50℃
|
|||
|
Relative Humidity
|
5%~95%（No condensation）
|
|||
|
Ambient Brightness
|
0~8,600Lux（Fluorescence）0~100,000Lux（Sunlight）
|
|||
|
Safety Regulations
|
CE EN55022 , FCC Part 15 Class B , CE EMC Class B
|
|||
|
Working Vibration
|
10~ 150HZ，0.5G，3 Axial，1min/oct ，1 time/axial
|
|||
|
Durable Vibration
|
10~ 150HZ，2G ，3 Axial，1min/oct ，20 time/axial
|
|||
|

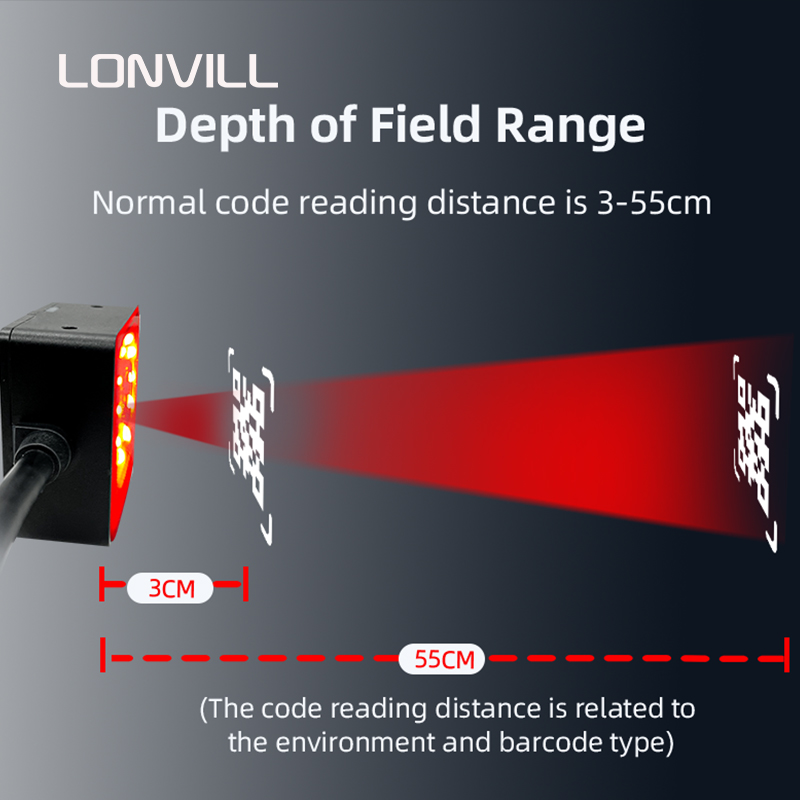

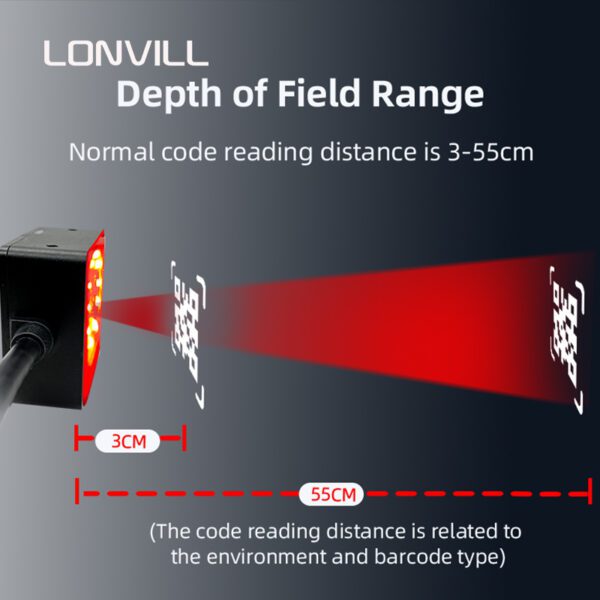

Typical Code Reading Depth of Field
|
||
|
Typical Code Reading Depth of Field
|
HD
|
SR
|
|
Typical Code Reading Depth of Field
|
1D ≧3 mil ; 2D ≧5 mil
|
1D ≧3mil; 2D≧7mil
|
|
Typical Code Reading Depth of Field
|
Code39 (3mil): 40~140mm
|
Code39 (3 mil) : 45 ~150 mm
|
|
QR (5mil) : 45 ~105mm
|
Code39 (5 mil) : 30 ~255 mm
|
|
|
Code39 (5 mil) : 35 ~210 mm
|
EAN-13 (13 mil) : 30 ~500mm
|
|
|
EAN-13 (13 mil) : 30 ~320mm
|
||
Oferowany produkt posiada interfejs USB.
