Parametry produktu
|
Image Sensor
|
640×480 CMOS
|
|
Illumination Aiming
|
Red LED 617nm LED
|
|
Symbologies
|
2D :
PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140), Aztec code,Maxicode,etc |
|
1D :
Code 128, EAN-8, EAN-13, UPC-E, UPC-A, Interleaved 2 of 5, Matrix 2 of 5, Code 39, Codabar, Code 93, Code 11, MSI-Plessey,etc. |
|
|
Typical Depth of Field
|
EAN-13 45mm-250mm (13mil)
|
|
Code 39 60mm-100mm (4mil)
|
|
|
QR Code 40mm-250mm (20mil)
|
|
|
PDF 417 40mm-200mm (10mil)
|
|
|
Symbol Contrast
|
≥25%
|
|
Scan Angle
|
Roll: 360°, Pitch: ±55°, Skew: ±55°
|
|

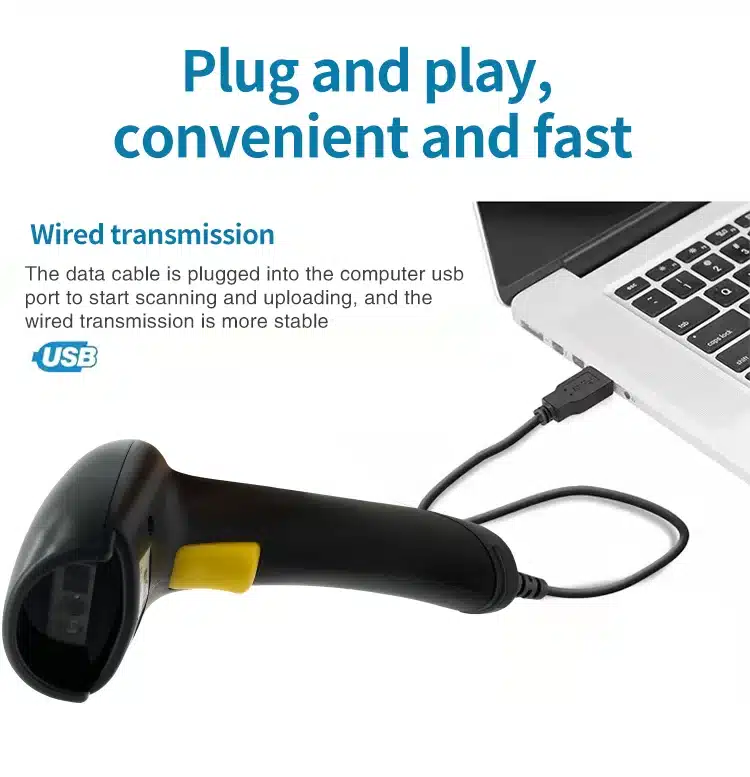

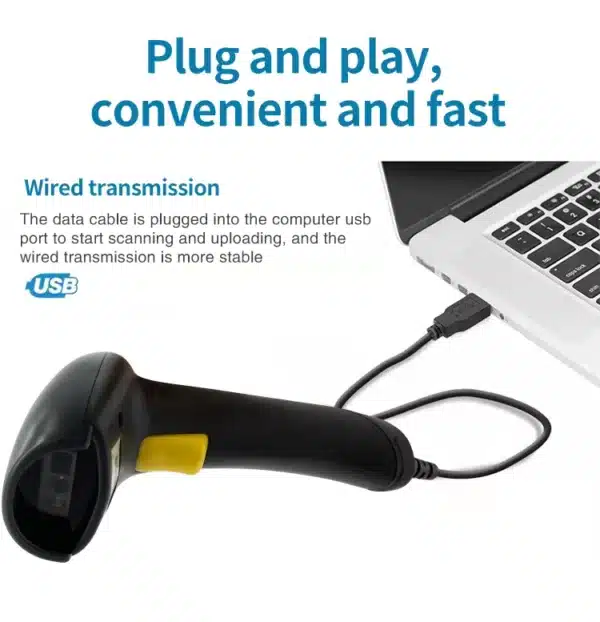

Interface
|
USB,USB-COM
|
|
Operating Voltage
|
3.3 VDC±10%*200mA
|
|
Humidity
|
5% to 95% (non-condensing)
|
|
Ambient Light
|
0~100,000lux
|
|
Certifications
|
CE,FCC,ROHS
|
|

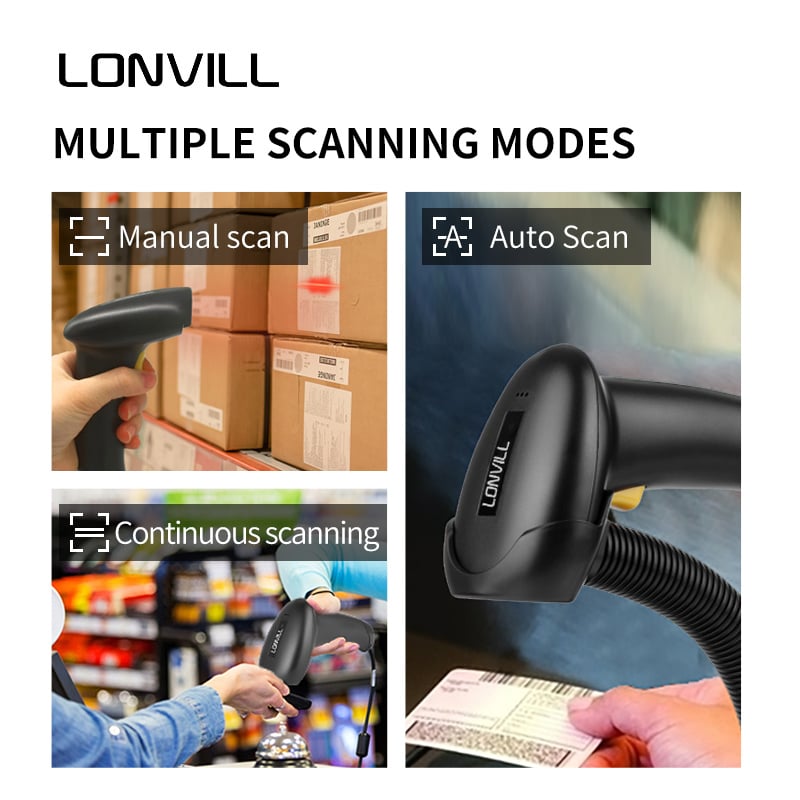

Trigger mode
|
Manual button, auto-sensing
|
|
Lighting
|
6500K LED
|
|
Key life
|
1000,000 times
|
|

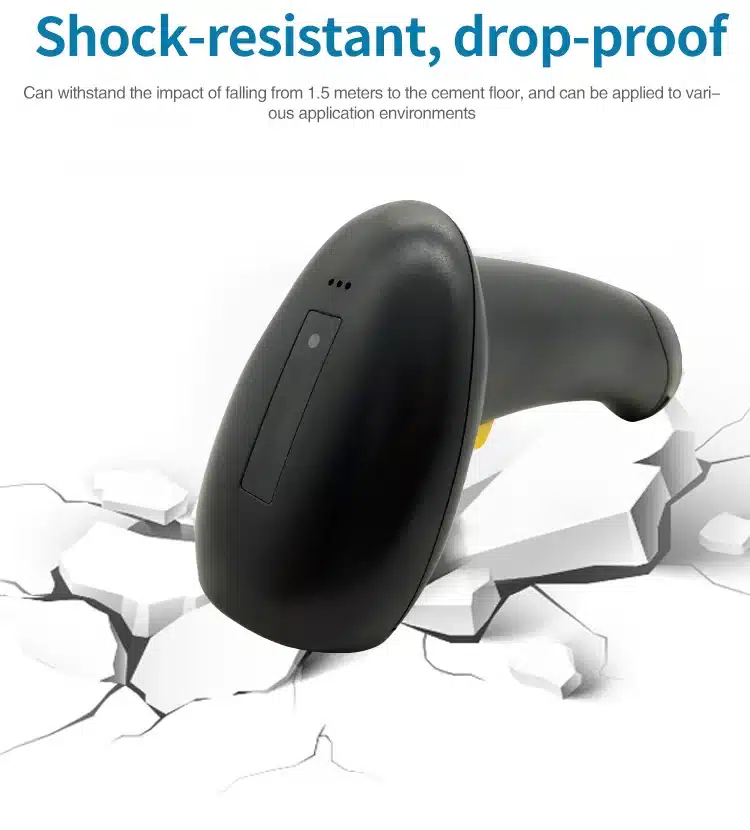

Drop specification
|
1.5m
|
|
Transmission distance
|
400 meters
|
|
Working time
|
3 to 7 days
|
Oferowany produkt posiada interfejs USB.
